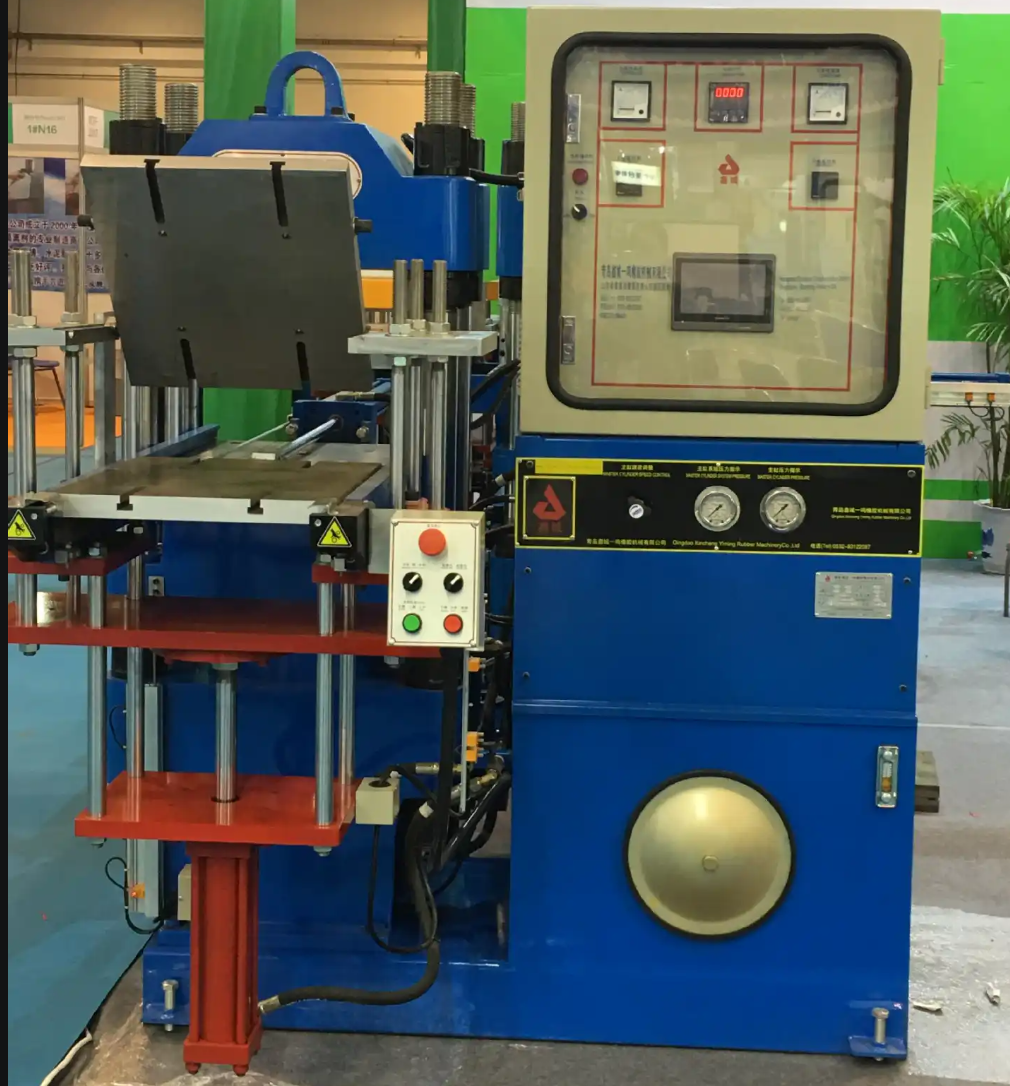

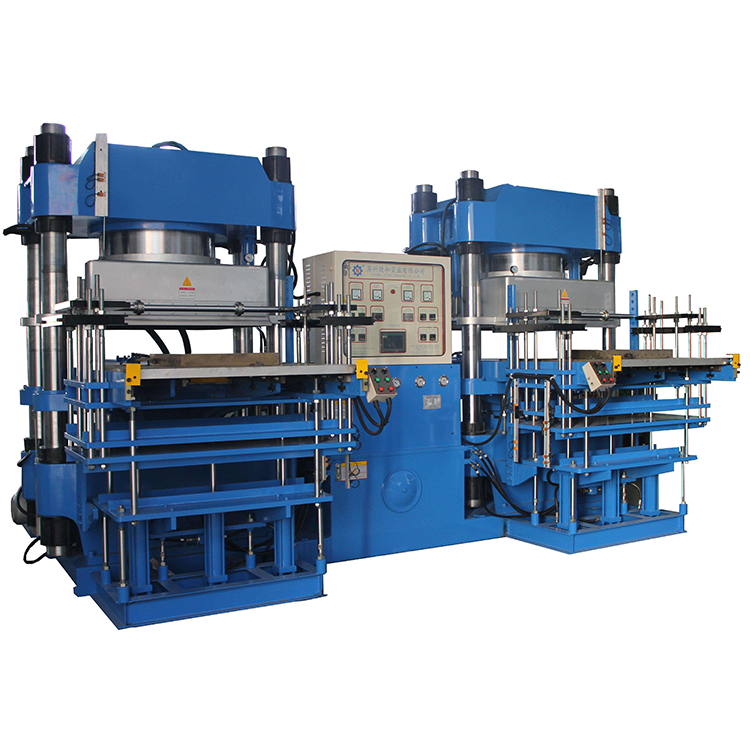

2RT/4RT Single and double station Electric Heating Rubber Vulcanizing molding Machine for Rubber 0-25MPa Pressure Range
Product Description:
This series of plate vulcanizing machine is a special molding equipment for rubber industry. The heating method adopts electric heating (steam or oil heating), and the power adopts high combination pump as the oil method to reduce the power loss of the equipment.
The electrical control adopts advanced PLC control technology, which can realize automatic control, automatic operation mold, automatic heating control and other processes. And can realize automatic deflating, automatic closing, opening, pushing, top die, so as to ensure product quality and high efficiency.
In addition, according to the technical requirements of customers, we can customize a variety of four-column, frame, workbench, workbench and other plate vulcanization machines.
Features:
1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.
3. Automatic and semi-automatic waste tire recycling equipment
4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .
6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.
7. Paper roll cutting machine.
Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil.
We warmly welcome customers visit our factory and technology discussion is highly appreciated. Technical Parameters:
| Parameter/model | 100 Ton | 150 Ton | 200 Ton | 250 Ton | 300 Ton | 350 Ton | 400 Ton | 500 Ton |
| Clamping Force(T) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
| Plate Size(mm) | 400*400 | 450*460 | 560*560 | 650*600 | 650*650 | 750*700 | 850*850 | 1000*1000 |
| Pistion Stroke(mm) | 250 | 250 | 250 | 250 | 280 | 300 | 300 | 300 |
| Cylinder Diameter(mm) | 250 | 300 | 355 | 400 | 450 | 475 | 500 | 560 |
| Main Motor Power(KW) | 12 | 17 | 22 | 34 | 34 | 43 | 48 | 72 |
| Type of mold opening | Track-Mold-Open |
| Weight(KG) | 4500 | 5500 | 7000 | 9000 | 11000 | 15000 | 17500 | 21500 |
| Length(mm) | 2650 | 3200 | 3650 | 4200 | 2360 | 2930 | 2500 | 3750 |
| Width (mm) | 2000 | 2700 | 2600 | 3300 | 1650 | 2350 | 2630 | 2700 |
| Height(mm) | 2000 | 2500 | 2610 | 3300 | 1850 | 2100 | 3460 | 2800 |
Keywords: Rubber Heat Press Machine, Rubber Molding Vulcanizing Press, Rubber Plate Vulcanizing Machine
Applications:
The Rubber Vulcanizing Press Machine is specifically designed to operate in a range of industries, including automotive, construction, and manufacturing. It is perfect for vulcanizing rubber products such as rubber tires, rubber mats, and other rubber products. The machine has a cylinder stroke of 200mm, a voltage of 220V/380V/400V/440/, and a pressure range of 0-25MPa. The control system is PLC, which makes it easy to operate and monitor the machine's performance.
The Rubber Tire Vulcanizing Press is ideal for the automotive industry, where it can be used to produce high-quality rubber tires that meet industry standards. The machine's precise pressure control system ensures that the tires are vulcanized to the required specifications, resulting in high-quality and durable products that can withstand harsh environments and heavy use.
The Rubber Mat Vulcanizing Press is perfect for the construction industry, where it can be used to produce high-quality rubber mats that can be used for flooring and other applications. The machine's pressure control system ensures that the mats are vulcanized to the required specifications, resulting in high-quality and durable products that can withstand heavy use and harsh environments.
In conclusion, the Beishun Rubber Vulcanizing Press Machine is a versatile and high-quality product that is designed for a variety of applications. With its precise pressure control system, it is ideal for vulcanizing rubber products such as rubber tires and mats. The machine is easy to operate, and its PLC control system ensures that performance is monitored and optimized for efficient production. With a delivery time of 45 days and a supply ability of 30 sets per year, this machine is a reliable and cost-effective investment for any business in need of high-quality rubber vulcanization equipment.
Packing and Shipping:
Product Packaging:
- The rubber vulcanizing press machine is securely packed and shipped in a wooden crate to prevent any damages during transportation.
- All necessary components and accessories are included in the package.
- Clear and comprehensive instruction manual is provided to assist with the assembly and operation of the machine.
Shipping:
- The rubber vulcanizing press machine is shipped via a reputable carrier service.
- The shipping cost is calculated based on the destination and weight of the package.
- The estimated shipping time will be provided to the customer upon order confirmation.
- A tracking number will be provided to the customer once the package is shipped
